Electro-Voice Evolve 50M: The Portable Powerhouse with an Integrated Mixer

The Electro-Voice Evolve 50M is a portable column loudspeaker system designed for a wide range of applications, from solo musicians and DJs to small bands and corporate events. Building upon the success of the original Evolve 50, the “M” version adds a fully integrated eight-channel digital mixer, making it an even more versatile and convenient all-in-one PA solution.

Features:

• Sleek and Portable Design: The Evolve 50M boasts a stylish and compact design, making it easy to transport and set up. It consists of three lightweight components: a subwoofer, a column array, and a connecting pole. A carry bag for the column and pole is included for added convenience.
• Wide and Even Coverage: The column array features eight 3.5″ neodymium drivers and custom waveguides, providing an ultra-wide 120° horizontal coverage and a 40° asymmetrical vertical coverage. This ensures that the sound reaches both seated and standing audiences evenly.

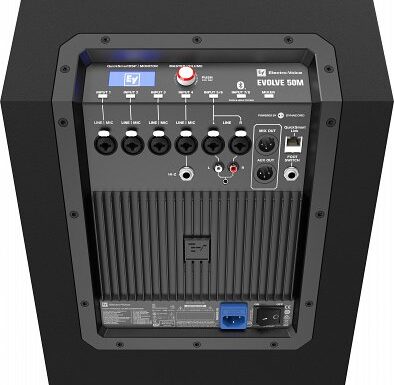

• Integrated Eight-Channel Digital Mixer: This is the standout feature of the 50M. Developed in collaboration with Dynacord, the onboard mixer offers four XLR/TRS combo mic/line inputs, one XLR/TRS combo stereo line input, RCA, 3.5 mm stereo, and a Hi-Z instrument input. Each channel has professional-grade preamps, level control, and independent aux sends.
• High-Quality Bluetooth Audio Streaming: The system supports high-resolution, low-latency Bluetooth streaming, perfect for playing backing tracks or streaming music directly from a mobile device.
• Onboard DSP and Effects: Electro-Voice’s powerful QuickSmart DSP provides four factory presets (Music, Live, Speech, Club), a three-band system EQ, a seven-band graphic EQ (in Mixer mode), and five user-programmable presets. Additionally, two FX channels offer 30 preset effects, including reverb, delay, chorus, and flange, allowing users to fine-tune their sound without external processors.
• QuickSmart Link Technology: This innovative feature allows users to connect two Evolve 50M systems via an Ethernet cable. This creates an uncompressed digital audio and control connection, effectively doubling the input channels and allowing for comprehensive control of both systems through the QuickSmart Mobile app.
• Wireless Control and Monitoring: The QuickSmart Mobile app (available for iOS and Android) provides complete wireless control over all audio, effects, and mix functions. This allows for remote adjustments from anywhere in the venue.
• Powerful Class-D Amplifier: The integrated Class-D amplifier delivers up to 1000W of power, providing ample headroom for various performance scenarios with a maximum SPL of 127 dB.
• Rugged Construction: The column array is made from a durable composite material with an ergonomic aluminum handle, while the 12″ subwoofer is housed in a 15 mm wood enclosure with a laminar-flow vent design for enhanced rigidity and acoustic performance. The speakers are protected by a black powder-coated 18-gauge steel grille.

Functions:

The Electro-Voice Evolve 50M is designed to function as a complete and versatile sound reinforcement system. Its primary functions include:

• Live Sound Performance: Ideal for solo performers, duos, small bands, and DJs, providing clear and powerful sound for vocals and instruments.
• Public Speaking: Delivers excellent clarity and coverage for speeches, presentations, and conferences.
• Background Music Playback: High-quality Bluetooth streaming makes it easy to play music during intermissions or events.
• Monitoring: Independent channel aux sends allow performers to connect stage monitors for personal listening.
• All-in-One Solution: The integrated mixer and DSP eliminate the need for external equipment, reducing setup time and stage clutter.
• Scalability: The QuickSmart Link feature allows for easy expansion by connecting a second Evolve 50M for larger events or more complex setups.
• Wireless Control: The QuickSmart Mobile app provides freedom and flexibility to adjust the sound mix from anywhere in the venue, which is particularly useful for performers who also manage their own sound.

The Electro-Voice Evolve 50M has generally received positive reviews from users and industry experts, highlighting its combination of portability, sound quality, and integrated features.

Pros:

• Excellent Sound Quality: Reviewers consistently praise the Evolve 50M for its clear, balanced, and powerful sound reproduction across the frequency spectrum. The wide coverage pattern ensures that the audience experiences consistent sound levels throughout the venue.
• Unmatched Convenience: The integrated mixer is a game-changer, simplifying setup and eliminating the need for extra gear. The ease of assembly and disassembly is also frequently mentioned as a significant advantage for mobile performers.
• Powerful and Versatile DSP: The onboard DSP offers a wide range of useful presets and customization options, allowing users to tailor the sound to their specific needs and venue. The effects are also reported to be of high quality.
• Intuitive Wireless Control: The QuickSmart Mobile app is praised for its user-friendly interface and comprehensive control over all system parameters, providing a significant advantage for live performers.
• Robust and Portable Design: The Evolve 50M is built to withstand the rigors of live performance while remaining relatively lightweight and easy to transport. The included carry bag for the column adds to its portability.
• QuickSmart Link for Expandability: The ability to easily link two systems together provides a scalable solution for growing needs.

Cons:

• Price: Compared to some passive PA systems or simpler active speakers, the Evolve 50M can be a significant investment. However, the integrated mixer and DSP justify the cost for many users.
• App Reliability (Minor Concerns): While generally well-received, some users have occasionally reported minor connectivity issues or desired additional features in the QuickSmart Mobile app, such as level meters alongside the on-screen faders.
• Subwoofer Size: While providing ample bass, the 12″ subwoofer might not be sufficient for very bass-heavy music genres or extremely large venues without the addition of separate subwoofers.
• Phantom Power: The phantom power supply is +15V, which may not be sufficient for all condenser microphones, although it should work with most common models.

Overall:

The Electro-Voice Evolve 50M stands out as a highly capable and user-friendly portable PA system. Its integrated digital mixer, comprehensive DSP, wireless control, and excellent sound quality make it an ideal solution for performers and presenters who value convenience without compromising on professional performance. While the initial investment might be higher than some alternatives, the Evolve 50M’s versatility and all-in-one design can ultimately save time, space, and the hassle of managing multiple pieces of equipment. It’s a well-engineered system that delivers on its promise of professional performance in a portable package.
